FLYEFFICIENC Standard pedal type
FX-LD-240FDetails page

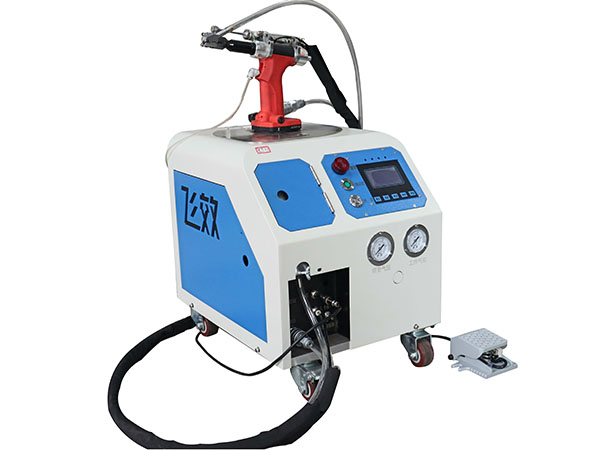

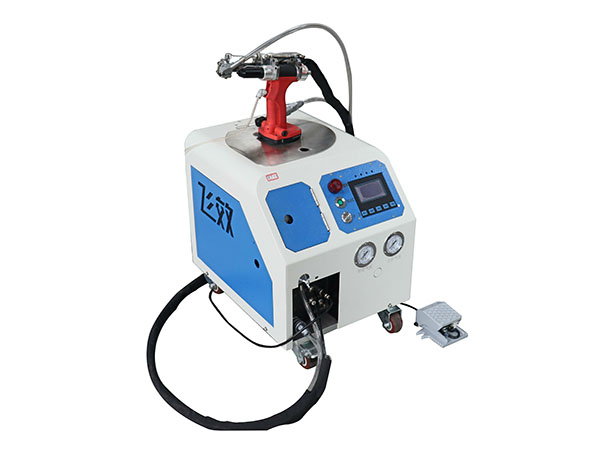

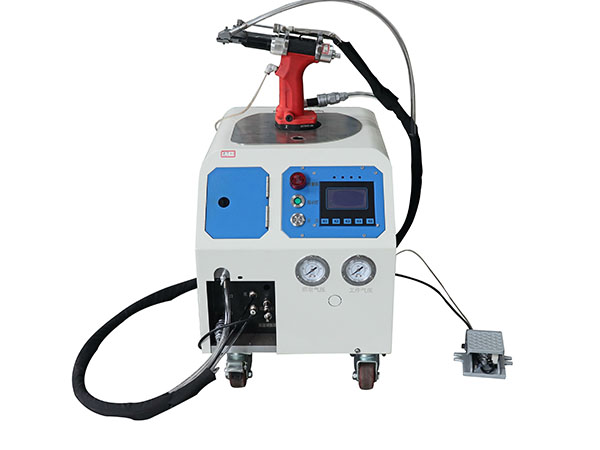

FX-LD-240F

Product model: FX-LD-480F

Dimensions: 440*350*420mm

Product unit: set

Pull head type: flat head round head countersunk head

Pull nail material: Flat head round head countersunk head

Application industry: Stainless steel aluminum iron

Consult now

TEL:4006-784-785



The era of the automatic pull nail machine and the end of the hand puller has arrived.

Smart fastening does not take by hand ·Save for your business30%Labor cost

FLY EFFICIENC

 Why choose automatic nail puller?

  • Provincial workers, good management

    The pulling speed is fast, one person tops two, the worker is reduced, and the management cost and labor cost are reduced.
    01
  • High efficiency and cost savings

    Do not take the nails by hand, save the time of nailing, increase the output than the original, complete the output on the day ahead, shorten the working hours, and no longer need to work overtime.
    02
  • Ultra clean, good quality

    The rivet is automatically sent to the nozzle, and it is not taken by hand to reduce secondary pollution. The left hand holds the product without worrying about the hole position, resulting in reduced production or secondary rework.
    03
  • No need to take it by hand

    The left hand does not need to work, it can support the product, greatly reducing the labor intensity of the workers, and the operation is simpler and faster.
    04
  • No need to be familiar, easy to learn

    Hands-on operation, no training, immediate employment; no longer have to rely on skilled hands to leave the job and affect productivity.
    05
  • Intelligent, good image

    Intelligent equipment, to give enterprises a good image, so that customers have a high degree of recognition and confidence.
    06

FLY EFFICIENC

Product introduction



The fly-effect automatic nail puller is a machine developed by Xunjie Technology to automatically transport and pull the rivet into the nipper nozzle. It has successfully applied for a number of patents and filled the domestic gap. Its use can save your business more than 30% of labor costs. The pedal-type automatic nail puller is one of the different fixed modes of the fly-effect puller.
The fly-effect automatic nail puller is different from the rivet gun on the market. The rivet gun on the market relies on the hand to pull the rivet into the rivet gun mouth, or the handle rivet gun to close the nipple rod by hand. The rivet is sucked into the rivet gun nozzle by the negative pressure in the nipper nozzle; the flying effect automatic rivet machine is an automatic version of the rivet gun, which relies on the machine to automatically arrange and separate the rivet and compress air. For power, the rivet is automatically transported through the pipe to the rivet gun and automatically loaded onto the nozzle. Through the fly-effect automatic nail puller, it is a major technological advancement in the rivet industry to make heavy manual work that relies heavily on skilled workers to upgrade to automated or unmanned work.


FLY EFFICIENC

Product parameters

Model FX-LD-240F Dimensions 440x350x420mm
Silo capacity 3000~5000grain rated power 350W
equipment weight 45KG Riveting speed 1.2~1.5 seconds / grain
Pull nail gun SG-30 Pull gun weight 1.2kg
working pressure 6KG Rated air pressure 8KG
Spike speed 50~60grain/min Applicable rivet specifications 2.4mm
Tube length 2000~3000mm Back nail length 2000~3000mm
Input voltage 220V Low voltage 24V

FLY EFFICIENC

Product Features


Automatic feeding When the rivet is poured into the vibrating plate the feeding can be arranged in an orderly manner to the sub-nail Have
Automatic feeding When the rivet reaches the nail it can reach the nozzle by the nail tube. Have
Automatic feeding When the riveting action is completed the next rivet can be automatically delivered to the nozzle Have
Smart counting LCD monitor can be set to the number setting Have
Missing material alarm When there is no rivet to reach the nail the alarm light will automatically light up with a voice prompt Have
error alarm When an abnormality occurs in the machine the alarm light automatically lights up with a voice prompt Have
Number of foolproof Intelligent counting preventing leakage Optional
Tail collection The core pulling rod can reach the recycling barrel through the tail nail tube or use the tail nail collecting tube Optional

FLY EFFICIENC

Product display


FLY EFFICIENC

Good quality more attention to detail

Industrial grade tools stand up to repeated testing for long periods of use
  • Alarm light

    Automatically lights up when an abnormality occurs
  • track

    Row of rivets sorted in order

  • Windowed sliding door

    Convenient maintenance
  • Nail gun

    Can be selected according to customer needs

  • Casters

    Quick and easy to move without handling
    With brakes to prevent movement during use
  • Working barometer

    Safe and stable air pressure
  • LCD Monitor

    Intelligent counting to prevent missing nails
    Parameter can be set alarm function
  • Vibrating plate

    Automated nail supply saving time and effort

FLY EFFICIENC

The structure of the nail puller product


  •
    The function of the machine motion system is to arrange the rivets from the disordered state to the sequential separation and to convey the rivets to the nipper nozzles in a certain direction. The machine control system controls the various parts of the machine to operate according to the set action. The detection system detects whether the machine is operating stably according to the set program.

    01
  •
    The function of the machine motion system is to arrange the rivets from the disordered state to the sequential separation and to convey the rivets to the nipper nozzles in a certain direction. The machine control system controls the various parts of the machine to operate according to the set action. The detection system detects whether the machine is operating stably according to the set program.

    02

Features:

With the fly-effect automatic nail puller it is possible to upgrade the manual rivet work of heavy and heavily dependent skilled workers to automated or unmanned work.

principle:

The rivet is sucked into the nipper nozzle by the negative pressure in the nipper nozzle; and the flying automatic nailing machine is an automatic version of the automatic rivet gun which relies on the machine to automatically arrange and separate the rivet and Compressed air is used to power the rivet through the pipe to the nipper nozzle.


FLY EFFICIENC

Contrast of Advantages of Nail Pulling Machine

  • Traditional nail puller
  • Feixiao effect automatic nail puller
  • PK
  •   It needs to be nailed by hand. There is a nailing time.
  •   It can automatically mount rivets on the nozzle of the rivet gun, without needing any time to fix the rivets.
  •  Binding
    Time
  •   After pulling a pulling nail, the pulling nail gun should be moved to a certain position to facilitate the installation and pulling of rivets. It takes two moving times.
  •   No need to move the nailing time, after pulling a pulling nail, just move the gun nozzle to the second place where the nail needs to be pulled, no need to fix the nail time.
  •  Move
    Time
  •   The left hand also needs to support the worker to pull the nail in the case of grasping the pull nail after fixing the nail, so as to correct the hole.
  •   The left hand only needs to support the workpiece to align the holes.
  •  Left hand
    action
  •   While grasping the pull nail with the left hand, the workpiece needs to be supported. It is easy to lose the pull nail and the loss of the pull nail is high.
  •   Automatic nailing, no loss of pull nails, clean table, low loss of pull nails
  •  Loss
    Pull nail
  •   Right Holding Nail Gun
  •   Right-handed nail-pulling gun
  •  right hand
    action
  •   Need to use hand nail, hand sweat stain will pollute the nail, nail black
  •   No need to touch the nail by hand, clean and hygienic
  •  Cleanliness
  •   It takes half a month or more to train.
  •   No training period required, immediately on duty
  •  Personnel
    Requirements

FLY EFFICIENC

Industry Application

Flying-effect automatic nailing machine is suitable for riveting and drawing of two or more layers of different materials and thickness through rivets.

Widely used in chassis, cabinet, lighting, automobiles, ships, airplanes, small appliances, servers, electric ovens, microwave ovens, liquor packaging and other industries to pull nails.

  • Cabinet Industry

  • Cabinet Industry

  • Packaging Industry

  • Outdoor Appliances Industry

  • Sheet metal parts industry

  • Home Appliance Industry

  • Electronic Communications Industry

  • Automobile Parts Industry

FLY EFFICIENC

Feixiao·Speak with Strength

  • Quality Assurance

  • Direct deal

  • Elite Team

  • After-sale service

  • R&D Strength

Focus on the production of automatic nail puller

30MultinomialProduct patents·2000Many familiesUse of Witnesses·Independent R&D and production design

FLY EFFICIENC

After-sale service

  • Order placing process
  • Safety measures
  • Maintenance details
  • QA
  •

    Pre-communication

    Pre-communication

  •

    Confirmation of products and nails

    Confirmation of products and nails

  •

    Engineering evaluation

    Engineering evaluation

  •

    Programme confirmation

    Programme confirmation

  •

    Sign a contract

    Sign a contract

  •

    Order production

    Order production

  •

    Packing and Delivery

    Packing and Delivery

  • Installation training

    Installation training

Nail-pulling gun:
1. The nail-pulling gun should be handled lightly and not placed at will so as to avoid damaging important parts such as cylinders.
2. Installation, in accordance with the order of operation, the trachea, nail feeding pipe and induction line are inserted one by one to facilitate the normal use of the gun.
3. The nail-pulling gun must be replaced and maintained after a period of time for the long-term use of the gun.
Machine:
1. Standard configuration: rated voltage: 220V/working pressure: 5-6kg/rated pressure: 2-3kg.
2. When working, make sure the working table is smooth.
3. When connecting the induction wire, the machine must be shut down. Be careful not to operate live.
4. When the machine runs, lock the foot brake, so as not to move easily and affect the production progress.
1. Clean the vibrating disc regularly to ensure that it is clean. It is suggested that when there is no rivet in the vibrating disc, the residue in the vibrating disc should be blown out with high-pressure air gun, and the vibrating disc surface should be cleaned with clean cloth once a day.
2. Clean the inside of the nozzle regularly, usually every day or every other day.
3. Refuel the nail-pulling gun regularly. It is recommended to refuel the nail-pulling gun once a day.
4. Fueling method 1: Take off the shell of the gun head, slowly loosen the fueling screw with the inner hexagonal wrench, let the excess oil or bubbles overflow, and check whether the combined gasket is damaged, if damaged, need to be replaced in time. Connect the gas source, let the filling hole align to the oil receiving barrel (remember not to align with personnel and other items), then press the trigger to remove the waste oil, stand upside down for a few minutes to let the waste oil drain clean. Use product configuration needle injector to fill hydraulic oil. Firstly, the injector is manually tightened to the filling hole to push the injector until it feels obvious resistance. Slowly loosen the injector push rod and repeat it several times until the oil product no longer bubbles. When the oil level is full, the injector is pushed out and the filling screw is locked. Install the head and shell of the gun, wipe off the excess oil spill, clean the gun and replace the oil.
The second refueling method is to remove the shell of the gun head, the vertical riveter, loosen the four fixed connecting screw and inverted riveter. After pulling out the cylinder, the piston disc is pulled out. Pour out the waste oil, loosen the filling screw with the inner hexagonal wrench, place it for a few minutes to let the waste oil drain clean, and check whether the combined gasket is damaged, if damaged, it needs to be replaced in time. Clean cylinder and piston disc, apply lubricating grease evenly on O-ring of piston disc and inner wall of cylinder with brush, push piston disc again and tighten bottom cover. Connect with the air source, after repeated empty pulling, the gun body is placed slowly to open the refueling screw, let the excess oil spill, then lock the refueling screw again, install the gun head shell, wipe off the excess oil spill, clean the gun, replace the oil product.
5. Clean the nail track regularly to ensure smooth operation of the nail in the track. It is recommended that the nail be cleaned twice a week.
6. Clean the nail feeding system regularly to ensure the smooth operation of the nail feeding system. It is recommended to clean the moving part with a high-pressure gun once a week and add a proper amount of grease.
7. Clean the outer surface of the chassis regularly.
8. Turn off the power supply every day after work or when not in use.
Respected Users:
Thank you for using Flying Efficiency products, we will wholeheartedly provide you with quality services.
Quality assurance
1. Within one week from the date of purchase, our company has inspected the product quality problem (the appearance of the product is not damaged), and we unconditionally replace the same type of products.
2. For products with warranty clauses, within one year from the date of purchase, when quality problems arise in normal use, the mainframe can enjoy free warranty service and implement lifelong maintenance service (only material labor cost is charged).
3. For products without warranty clauses, within one year from the date of purchase, the mainframe can enjoy free warranty service when quality problems arise in normal use, and implement lifelong maintenance service (only material labor cost is charged).
4. Accessories other than mainframe belong to vulnerable parts and are not covered by warranty. In order to ensure the quality of products, it can be guaranteed or replaced free of charge within one month (except for nail-pulling guns).
